Part# KR99SSU78
Fits; 1999-2006 Chevy/GMC 6 Lug 1500, 4X4 Trucks (Silverado, Sierra, Avalanche) and SUV's (Tahoe, Suburban, Yukon, Escalade)
CENTERLINK INSTALLATION INSTRUCTIONS
FEATURES:
- Solid Steel Centerlink
- Death Grip Inner Tie Rod Joints
- Direct Bolt-on Install
- Designed for Trucks that Need to Work
- Lifetime Warranty
- Made in USA
DESCRIPTION:
This insanely strong centerlink has been engineered to maintain all factory alignment specs and steering geometry. This steering system is modeled after the centerlink found on the H1 Hummer and the military Humvee. When compared to what GM offered from factory on their non-Hummer trucks, this is a much stronger design. Additionally, this kit can be used with GM or other aftermarket idler arms and pitman arms. These components will work with the PISK support system. The PISK system should only be run if you are going to be competing (drag racing or sled pulling). We DO NOT recommend it for normal driving.
TECHNICAL SPECS:
Centerlink: Clear Zinc Coated 1-5/8" Hexagonal 1144 Stress Proof Carbon Steel
| |
1144 Stress Proof Carbon Steel
|
4140-4130 Chromoly Steel |
| Tensile Strength |
115,000 psi (Min.) |
85,000–110,000 psi |
| Yield Strength |
100,000 psi (Min.) |
70,000–85,000 psi |
DETAILS:
- Bulletproof, all steel inner ball sockets.
- Heat-treated chromoly nickel outer studs.
- Opposite threaded tie rod ends and jam nuts for ultimate adjustability.

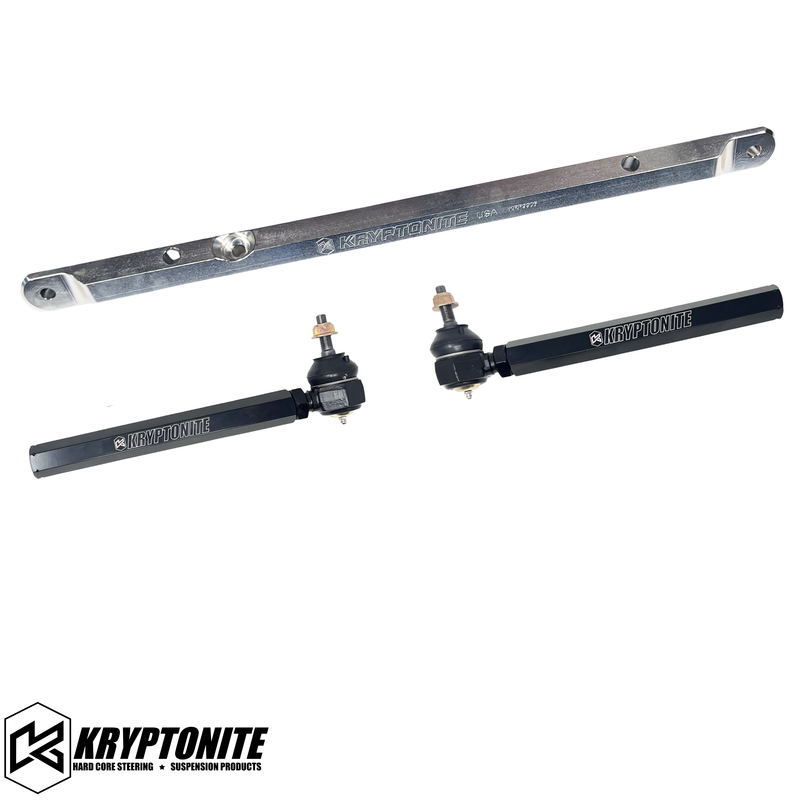

INCLUDES:
- 1 x Kryptonite Series Solid Centerlink
- 2 x Kryptonite Death Grip Series Inner Tie Rod Ends
(Kryptonite No Fine Print Lifetime warranty)
Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.
Your Kryptonite products must be purchased from an authorized dealer, and must complete warranty registration within 90 days of purchase. Complete Warranty details can be found here.
