KRYPTONITE FORD SUPER DUTY F250/F350 STAGE 3 LEVELING KIT WITH BILSTEIN SHOCKS 2017-2024
Part# KRFD17STAGE3BIL
Fits; 2017-2024 Ford F-250/F-350 Super Duty 4X4
Features
- Provides 2.5" of front lift
- Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
- Compatible with Larger wheels/tire with minor trimming
- Durable Black Finish
- Grade 10.9 Hardware
- Precision CAD Engineering
- Billet Aluminum Spacer
- Direct bolt on Install
- Made in the USA

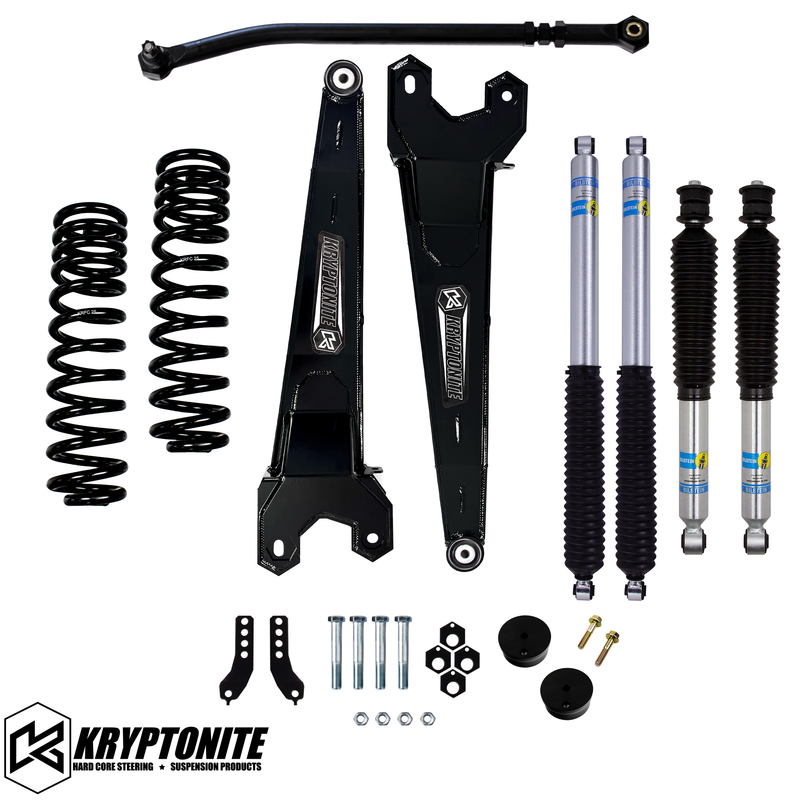

Includes
- Bilstein 5100 Series Extended Length shocks (4)
- Kryptonite Radius arm kit
- Bump Stop Spacer Kit
- 2.5" Leveling Coils
- Kryptonite Adjustable Track Bar - KRFTB17
Description
Our new Stage 3 Leveling Kit is just what you need if your looking for a comprehensive suspension upgrade on your 2017-2024 F250/F350 Truck! This complete kit includes everything you need to give the front of your truck an extra 2.5" ride height increase while maintaining adequate droop travel for a premium ride quality.
This kit will allow your to upgrade to a 35"x12.5 Tire with little to no trimming.
*Or a 37" with additional fender and front bumper clearance required.
Built into the box welded structure of this arm is a Tire clearance pocket which will allow clearance of a 37" x 13.5" Tire on a stock 20" rim with 5.5" of backspacing.
We kept alignment adjustability in mind with the design of this arm. Utilizing our exclusive Hexagon Caster Eccentric allows you to make fixed 2° incremental changes in 5 different positions. This means that at any ride height from 0" up to 6" you'll be able to dial in Caster exactly where you need it. The best part is, no worrying about loosing your adjustments over time or with rough driving. The Hex shape of this Caster Eccentric will lock your alignment adjustment into place.
This kit is sold with everything needed to install.
(Kryptonite No Fine Print Lifetime warranty)-Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.
Your Kryptonite products must be purchased from an authorized dealer, and must complete warranty registration within 90 days of purchase. Complete Warranty details can be found here.
